STM32F030F4P6 Microcontroller: Features, Pinout, and Applications

STM32F446RET6 Description

The STM32F030F4P6 microcontroller integrates an Arm® Cortex®-M0 32-bit RISC core operating at 48 MHz. It offers 16 Kbytes of Flash memory and 4 Kbytes of SRAM, providing efficient code execution and data handling.

Peripherals include one 12-bit ADC, advanced timers capable of PWM output, and essential communication interfaces such as USART, SPI, and I²C. Its operating voltage range is 2.4–3.6 V, supporting industrial-grade temperatures from -40°C to +85°C.

Packaged in a compact 20-pin TSSOP, the STM32F030F4P6 is optimized for cost-sensitive designs demanding real-time performance, low power consumption, and minimal PCB space.

STM32F030F4P6 Peripherals:

• ADC:

  • 1 × 12-bit ADC, up to 16 channels

• USART:

  • 1 × USART interface supporting up to 6 Mbit/s

• SPI:

  • 1 × SPI interface (up to 18 Mbit/s)

• I²C:

  • 1 × I²C interface supporting Fast mode (up to 400 kHz)

• Timers:

  • 1 × 16-bit advanced-control timer (TIM1) with PWM

  • 3 × 16-bit general-purpose timers (TIM3, TIM14, TIM16)

  • 1 × SysTick timer (24-bit down-counter)

• GPIO:

  • Up to 15 GPIO pins with interrupt capability

• Debug Interface:

  • Serial Wire Debug (SWD)

• Clock Sources:

  • Internal RC (HSI) oscillator: 8 MHz

  • Internal low-speed (LSI) oscillator: 40 kHz

  • External crystal oscillator support (HSE): 4–32 MHz

STM32F030F4P6 Microcontroller Pinout

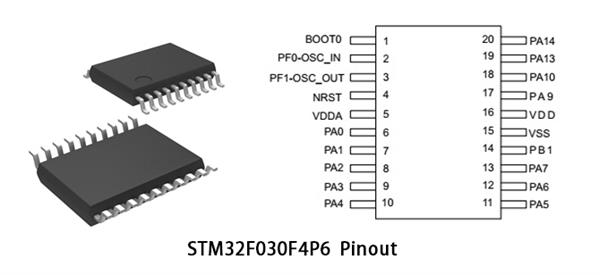

STM32F030F4P6 Pin Configuration

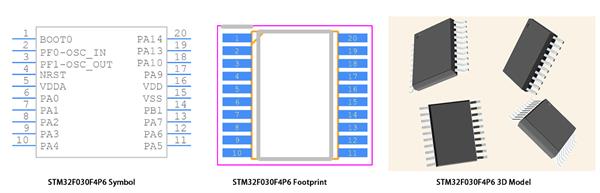

STM32F030F4P6 Symbol, Footprint & 3D Model

STM32F030F4P6 Applications

• Consumer Electronics: Remote controls, wearables.

• Industrial Automation: Sensor interfacing, temperature monitoring.

• Motor Control: Robotics, home appliances.

• IoT Devices: Smart home systems, connected devices.

• Medical Equipment: Wearable health devices.
